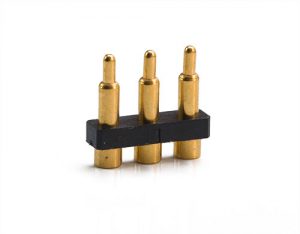

YLW 電性能 PGOPIN 彈簧針頂針

YLW工作電壓 Voltage:??36VDC Max. ?or 150 VDC/100 VRMS

YLW 額定電流測試（Temperature Rise VS Current Rating)???????????30°C Max.

YLW絕緣電阻Insulation Resistance???????? ?????????1000 M ohm Min. at 500 VDC

YLW耐壓Dielectric Withstanding Voltage ???????????500VAC ?1 minute between adjacent contact

YLW電容 Capacitance between two adjacent contacts??????? 1 pF Max.

永連旺電子彈簧針環境性能 ENVIRONMENTAL CHARACTERISTICS

工作溫度范圍Operating?Temp.???????????????-40°C?to 85 °C

儲存溫度范圍Storage?Temp.?????????????????? -40°C?to 85 °C

可焊性Solderability????????????????????????????????solder coverage area Min.95%

鹽霧腐蝕試驗Salt Spray Corrosion???????? 48-96?Hours

耐焊錫熱Resistance to Solder heat????????2?Cycles Reflow@ Peak 260 °C? 20S

高濕測試（Humidity）????????????????????????????96 hours @ 93%?R.H.?? 40 °C

高溫測試（Temperature Life）???????????????105°C? 96hrs

環境保護ENVIRONMENT PROTECTION

????符合RoHS要求???Conformed?to RoHS directive

符合REACH要求 Conformed?to REACH

永連旺電子包裝 PACKAGING

Tape & Reel?packaging acc. To EIA 481 standard

YLW對潮濕敏感MSL2 和MSL3 級連接器進行防潮包裝。不選用MSL4及以上塑膠材料。
